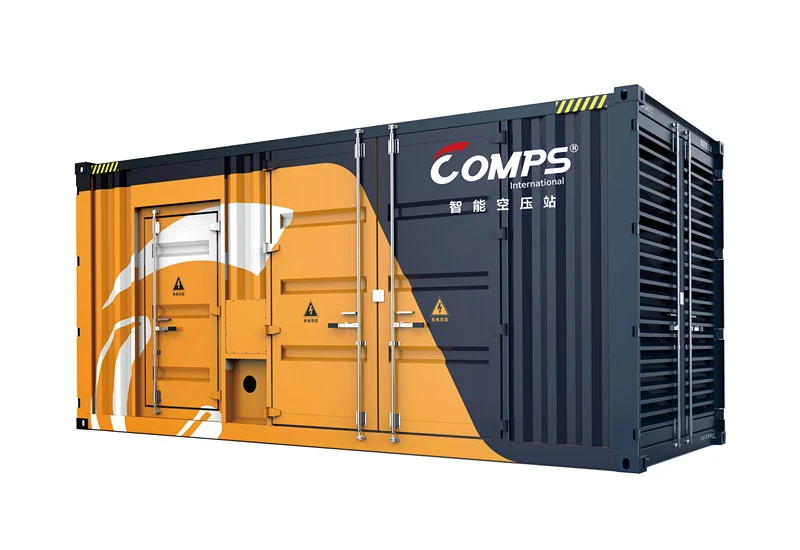

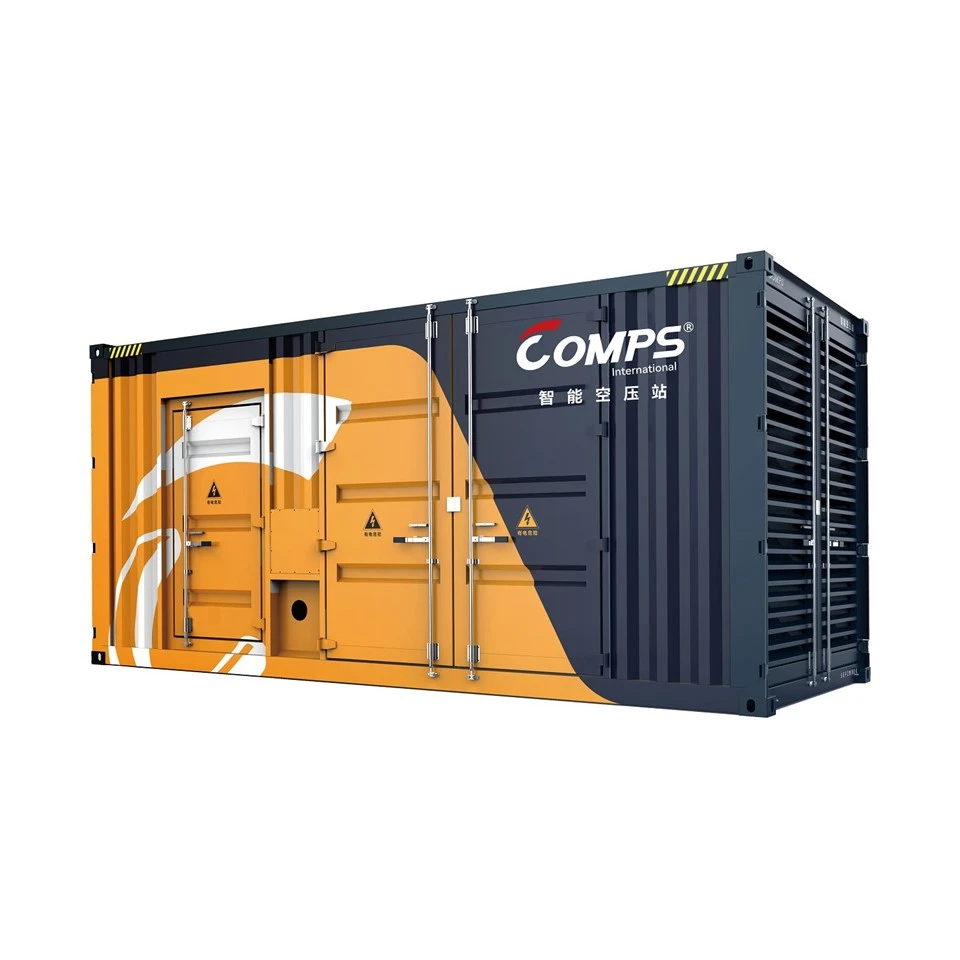

Ultra High Pressure Air Compressor

Standard compressors simply cannot reach the pressures that waterjet cutting, UHP testing and special gas stations require; the ultra high pressure air compressor is purpose-built to deliver 4.0 MPa and above. Because a single stage cannot compress air efficiently to these pressures - one stage would run at extreme temperature and power - the machine uses multi-stage compression with interstage cooling after every stage: each stage runs at a reasonable ratio, and interstage heat is removed so final discharge temperatures stay controlled. High-pressure cylinders are made from high-strength forgings to carry the extreme pressure, because cast or standard cylinders cannot hold 40-plus bar safely for long service; the circuit uses ultra-high-pressure dedicated seals and seamless steel tubing for reliability. Over-pressure protection is doubled with a relief valve, which vents on overpressure, and a rupture disc that provides a second, non-resettable safety barrier, while a smart monitoring system tracks key parameters in real time. Splitting the pressure rise across several stages also keeps each compression ratio moderate, so no single cylinder or seal has to absorb the full 40-plus-bar differential, and interstage cooling keeps the final air temperature in a safe operating range. These machines are not stocked catalog items: pressure, flow and stage count are engineered to each application, because waterjet cutting, UHP testing and CNG fuel stations each impose different duty cycles. For buyers, the practical point is that pressure above 40 bar cannot be improvised from a standard screw unit - it requires forged cylinders, dedicated seals and staged compression, which is exactly what this line provides. Each stage can also be equipped to the pressure demand of the application, so a waterjet rig and a testing rig can share the same platform with different stage configurations rather than being fitted with ordinary off-the-shelf hardware that was never engineered for such extreme and demanding high pressure.

Ultra high pressure machines cannot be selected from a catalog: the number of stages, each stage's compression ratio and the interstage cooling layout must be matched to the customer's pressure and flow duty. Our technical team engineers that multi-stage scheme around the actual working conditions - waterjet cutting, UHP testing or CNG duty each impose different flow curves. For buyers, this custom engineering removes the risk of ordering an off-the-shelf machine that cannot hold the target pressure, because the stage design and sealing specification are derived from the duty rather than adapted from a standard compressor.

The unit is export-packed on a wooden pallet with plastic foam cushioning, suited to sea freight. We fully support EXW, FOB, CIF and DDP trade terms, from factory pickup to door delivery. Customized ultra high pressure units are delivered within 60 days, with 30% advance payment and 70% balance before shipment.

FAQ



Q: Can you build the compressor to our technical drawings or prototype?

A: Yes. We manufacture according to customer technical drawings or prototypes, and our technical team confirms the pressure, flow and stage arrangement with you before production.

Q: Which trade terms can you support?

A: EXW, FOB, CIF and DDP, so you can choose factory pickup, port delivery, insured ocean freight or door-to-door delivery.

Q: What is the lead time for a customized ultra high pressure machine?

A: Customized units take 60 days, with progress photos and videos shared during production.
