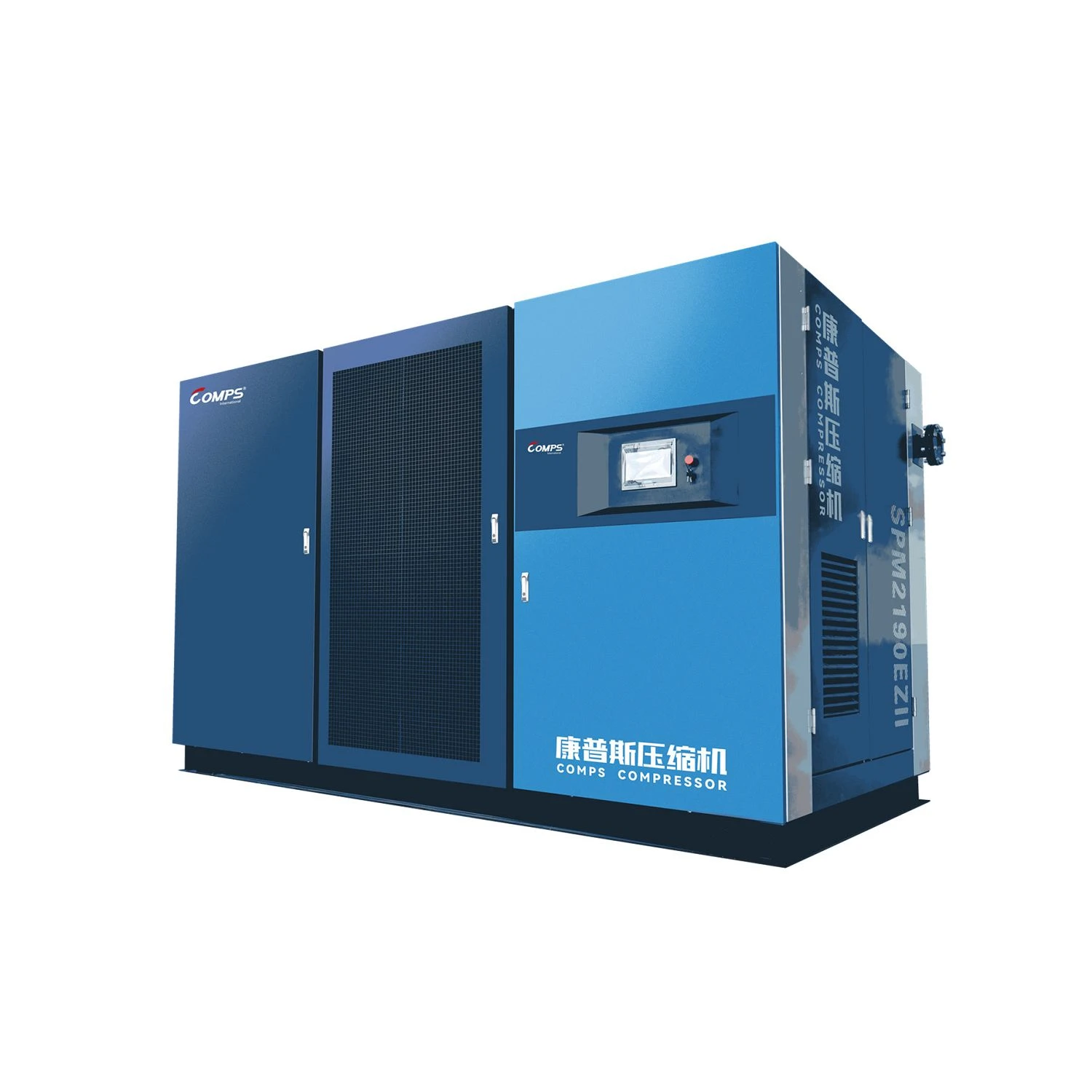

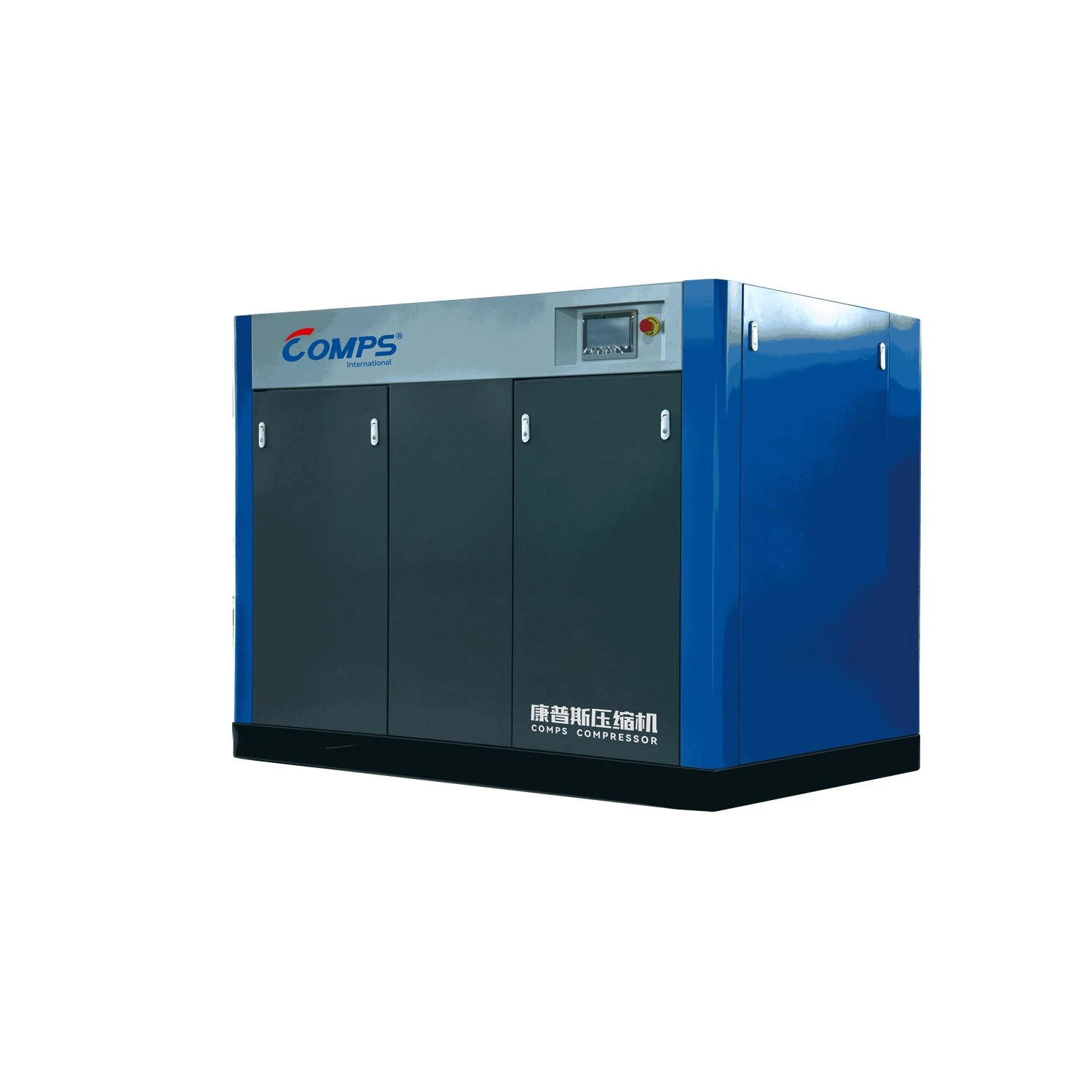

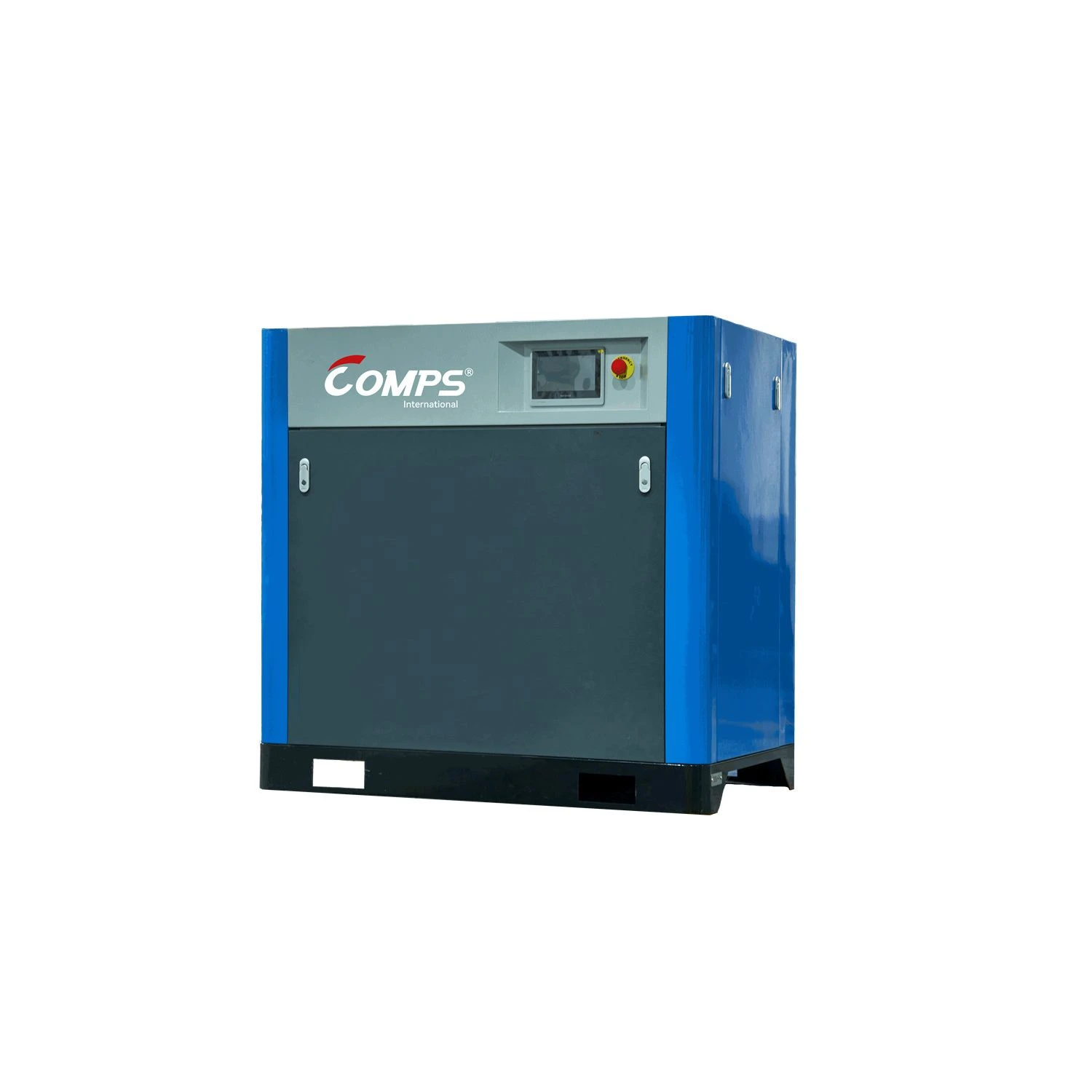

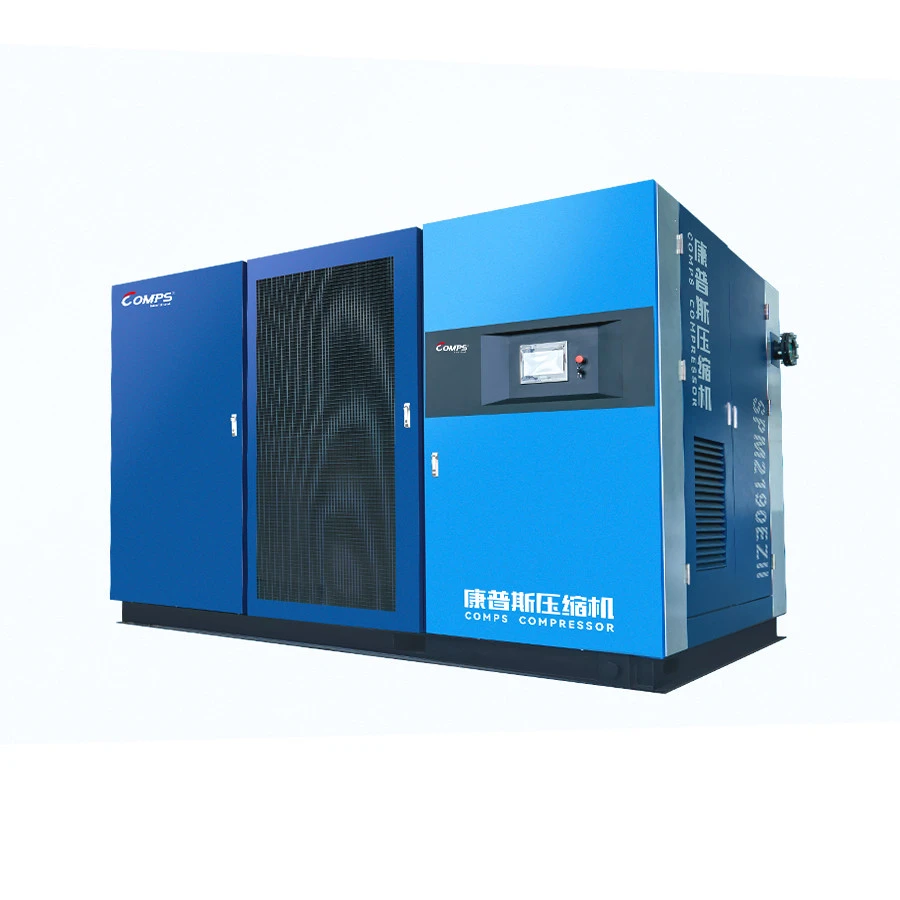

Permanent Magnet Screw Compressor

In a compressor that runs ten thousand hours a year, the motor is where the money goes. This permanent magnet screw compressor answers that with a high-efficiency permanent magnet synchronous motor driven by a dedicated inverter. The magnet motor has no excitation loss, holds efficiency above 96% - about 5-8 points above a standard asynchronous motor - and keeps a power factor close to 1, drawing little reactive power from the grid. Unlike ordinary motors that lose efficiency as speed drops, the PM motor stays efficient even at low speed, so the saving is strongest precisely when the plant runs partial load. The motor itself is compact and light, delivers high torque at low speed with easy starting, and uses rare-earth magnets with a high demagnetization temperature for long service life. The compact motor also shrinks the skid footprint, useful when the compressor room is already crowded, and direct-drive coupling removes transmission loss entirely - along with belts, pulleys and their routine replacement. The whole package reaches Grade 1 energy efficiency. The platform covers 6.5 to 32.5 cubic meters per minute at 8 to 13 bar with 45 to 160 kW. The purchasing logic is straightforward: for high-run-hour factories, every percentage of motor efficiency compounds into a smaller electricity bill, which is why the permanent magnet station pays back fastest in the line. For plants watching grid tariffs, the near-unity power factor also avoids the reactive-power charges that utilities add on standard asynchronous loads, a saving that shows up directly on the energy bill.

Comps does not sell this machine as a box alone. The technical team provides a complete compressed-air system study: air demand analysis, equipment sizing, piping network design, energy retrofit planning and after-treatment matching, adapted to the buyer's process. For an energy-saving buyer, the value is that the permanent magnet station is chosen as part of an optimized system rather than guessed from a catalog.

Applications



High-energy-consumption continuous manufacturing. Because the motor stays efficient at partial load, the PM platform pays back fastest in plants that run long hours with swinging demand.

Textile, chemical and auto parts plants. High power factor and compact footprint suit spaces where electrical capacity and floor area are both constrained.

Electronics plants sensitive to supply quality. Stable pressure and high efficiency support clean utility air while keeping energy cost under control.

Customization



We configure voltage and frequency to your grid, choose the pressure tier, and can integrate after-treatment equipment such as dryers and filters into the package. Canopy color, control layout and OEM branding are customizable; drawing-based design is supported.

All units are packed for export on wooden pallets with plastic foam cushioning to protect the canopy, cooler and control panel during sea freight. We support EXW, FOB, CIF and DDP terms. Payment is 30% advance before production and 70% balance before shipment. Standard units are delivered in 40 days, while customized units take about 60 days.

FAQ



Q1. Do you support OEM and ODM?

A.Yes, we provide OEM and ODM services.

Q2. Can you manufacture based on our technical drawings or prototypes?

A.Yes, we can produce according to your drawings or prototype.

Q3. What warranty is provided?

A. A one-year warranty is provided.
